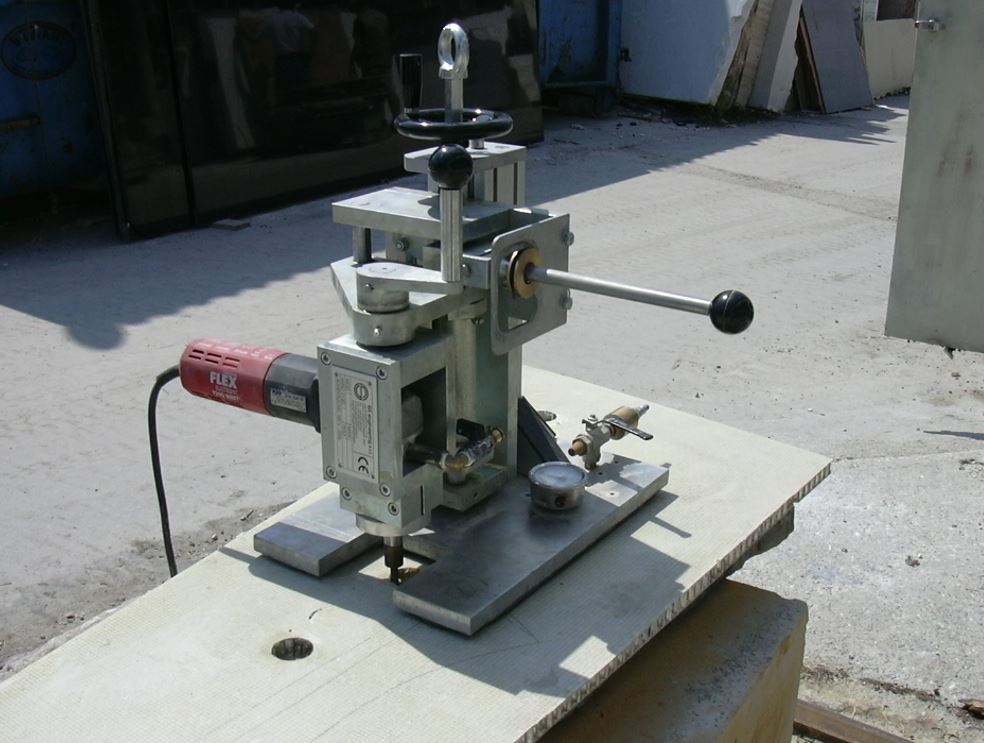

PORTABLE MANUAL DRILLING MACHINE
Automatic drilling unit including:
- hand-driven single drilling head mounted on vacuum plate
- typical vacuum plate dimensions: 200 x 200 mm
- manual Venturi valve for suction under the vacuum plate
- manual valve for cooling water supply
- hook on the top for easy handling by the aid of a workshop crane
Technical data:
- power of drill motor: 1.2 KW, feeding: 230V – 50Hz
- rpm: from 3500 to 10000
- head position: adjustable by manual movements
- max. vertical path: 30 mm
- basic drilling cycle by manual movements: 1 hole in 30 sec
- overall dimensions (typical) WxLxH: 555 x 370 x 440 mm
- gross weight: 44 Kg
|
