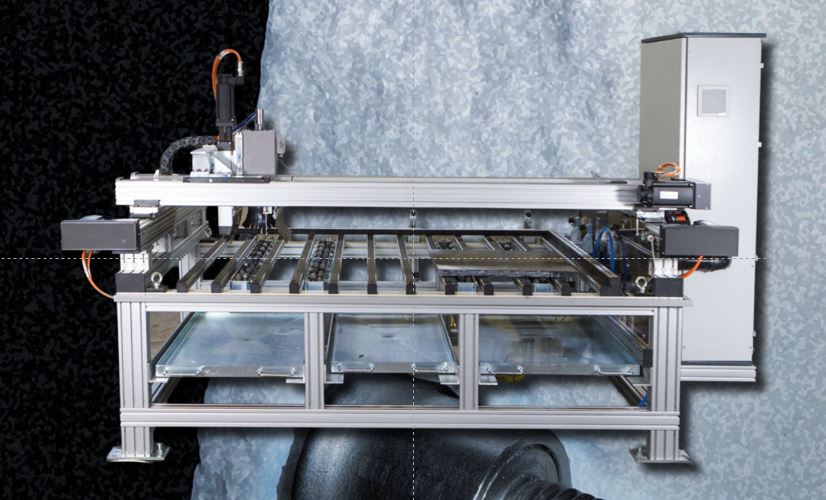

SINGLE-HEAD N.C. DRILLING MACHINE

Automatic drilling unit including:
- N.C. single drilling head mounted on bridge
- bench with rollers – working plane height 750 mm
- typical bench dimensions: 2330 x 1600 mm
- tanks for cooling water drainage
- electro-valve for cooling water supply
- electric switchboard with automatic & manual control
- console for N.C. operations

Technical data:
- power of drill motor: 2.2 KW, feeding: 380V – 50Hz
- rpm: from 2000 to 9000
- head position: controlled by the selected N.C. program
- drilling area (typical): 1650 x 1100 mm
- max. vertical path: 100 mm

- basic drilling cycle by automatic movements: 1 hole in 30 sec
- overall dimensions (typical) WxLxH: 3131 x 2057 x 1820 mm
- gross weight: 800 Kg
