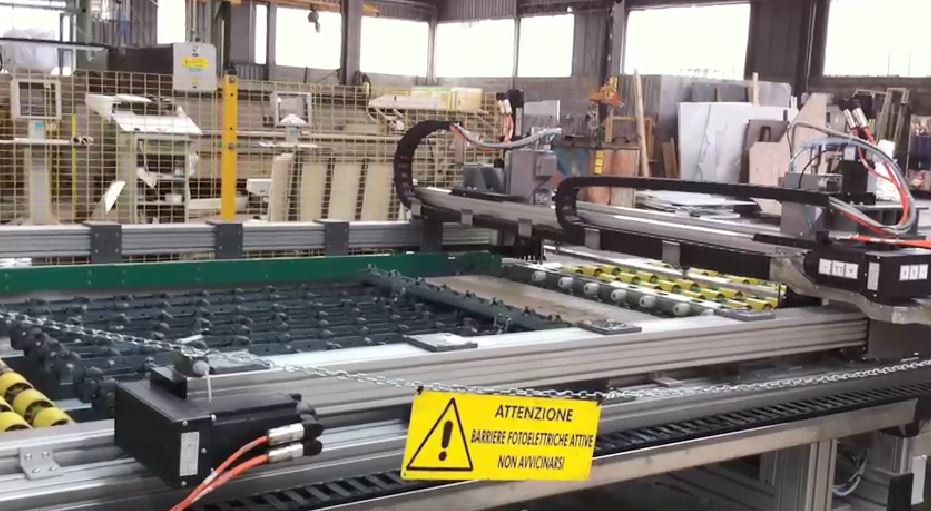

TWIN-HEAD N.C. DRILLING MACHINE

Automatic drilling unit including:
- two N.C. drilling heads mounted on bridge
- bench with rollers – working plane height 750 mm
- automatic feeding & ejection of the slabs
- typical bench dimensions: 2600 x 2470 mm
- electro-valve for cooling water supply
- electric switchboard with automatic & manual control
- console for N.C. operations

Technical data:
- power of drill motor: 2 x 2.2 KW, feeding: 380V – 50Hz
- rpm: from 2000 to 9000
- head position: controlled by the selected N.C. program
- drilling area (typical): 1810 x 1830 mm
- max. vertical path: 80/140 mm
- basic drilling cycle by automatic movements: 2 holes in 30 sec
- overall dimensions (typical) WxLxH: 2730 x 3276 x 1590 mm
- gross weight: 1325 Kg
